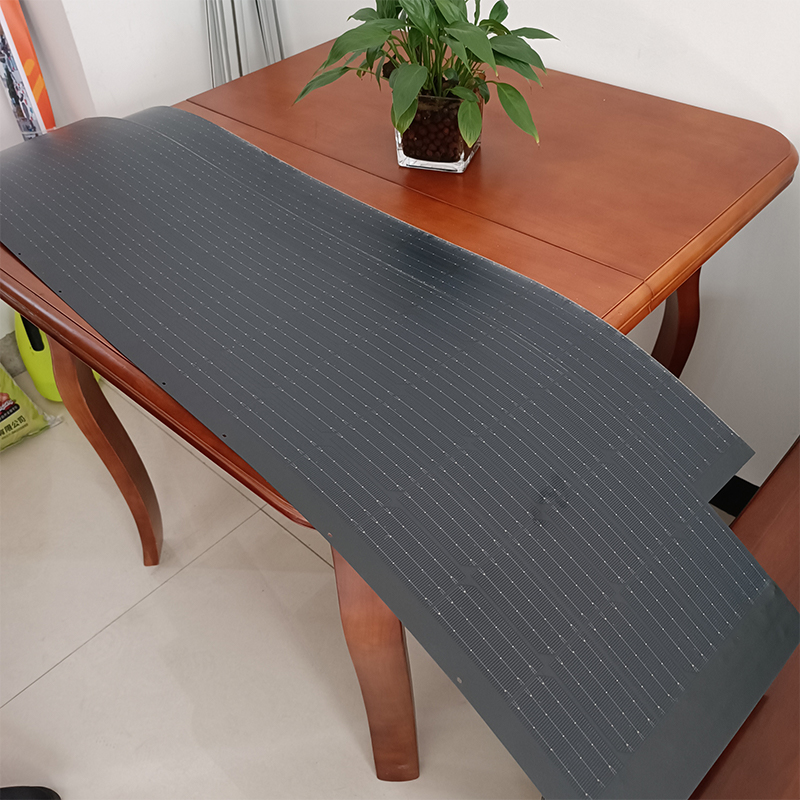

120W Flexibile Solarium Panel: Lightweight, Durabilis, et High-Efficiency Solutio pro Portable et Off-Grid Power Needs

120W Flexibile Solarium Panel est progressa solutio pro inceptis quae efficientiam, elegantem speciem et technologiam praestantem designant. Leve et flexibile consilium hoc specimen pro variis applicationibus facit ut plateam accendendi, parcum accendendi, landscape illustrandi, etc. Adhibet processum flexibile consilium tabulae solaris, quae integrationem tabularum solarium cum lucernis et vectibus meliorem facit..

PETO QUOTE
PREV: 140W Flexible Solar Panel: High-Performance, Elegant and Versatile Power Solution for Lighting Poles and Park Lightings DEINDE: Nullus proximus articulum

Morbi laoreet

Exemplar No. DDK-FLEX-SHJ- 120 DDK-FLEX-SHJ- 141 DDK-FLEX-SHJ- 161 DDK-FLEX-SHJ- 201
Solaris Cell Type Super-filum
Heterojunction Solaris Cell cum Super-filum Flexibile Connection Technology Cell efficientiam ≥24%
Applicatur pro poli
Diameter(mm) 		180mm 200mm 210mm  220mm   230mm 250mm 300mm    315mm
Circuitus interior in parallel 6 Circuitus
in Parallel 		7 Circuitus
in Parallel 		8 Circuitus
in Parallel 		10 Circuitus
in Parallel
Pmax(W) 120 141 161 201
Vmp(V) 17.7 17.7 17.7 17.7
Imp(A) 6.81 7.95 9.09 11.36
Voc(V) 22.14 22.14 22.14 22.14
Isc(A) 7.35 8.57 9.8 12.25
Pane 1330×571/633×1.5mm 1330×664/697/729×1.5mm 1330×792×1.5mm 1330×949x1.5mm
Panel Pondus 1.2 Kg/1.3Kg 1.4-1.6Kg 1.7Kg 2.0Kg
Operatio Temperature -40℃~85C
Potestatem Temp Co-efficiens (%/℃) -0.27
Current Co-efficiens (%/℃) 0.04
Intentione Co-efficiens (%/°C) -0.26
Nota Funem solarem nullum; / -Solding puncta sunt in panel tergo.
